..front Disc. brake question...

Discussion in 'Technical' started by 71gold, Feb 27, 2013.

Page 3 of 3
  1. vvr210

    vvr210 Member

    Joined:
    Mar 14, 2012
    Messages:
    586
    Likes Received:
    2
    Trophy Points:
    67
    Location:
    Vista,CA
    Vehicle:
    73 Grabber/73 Maverick4-Door 250

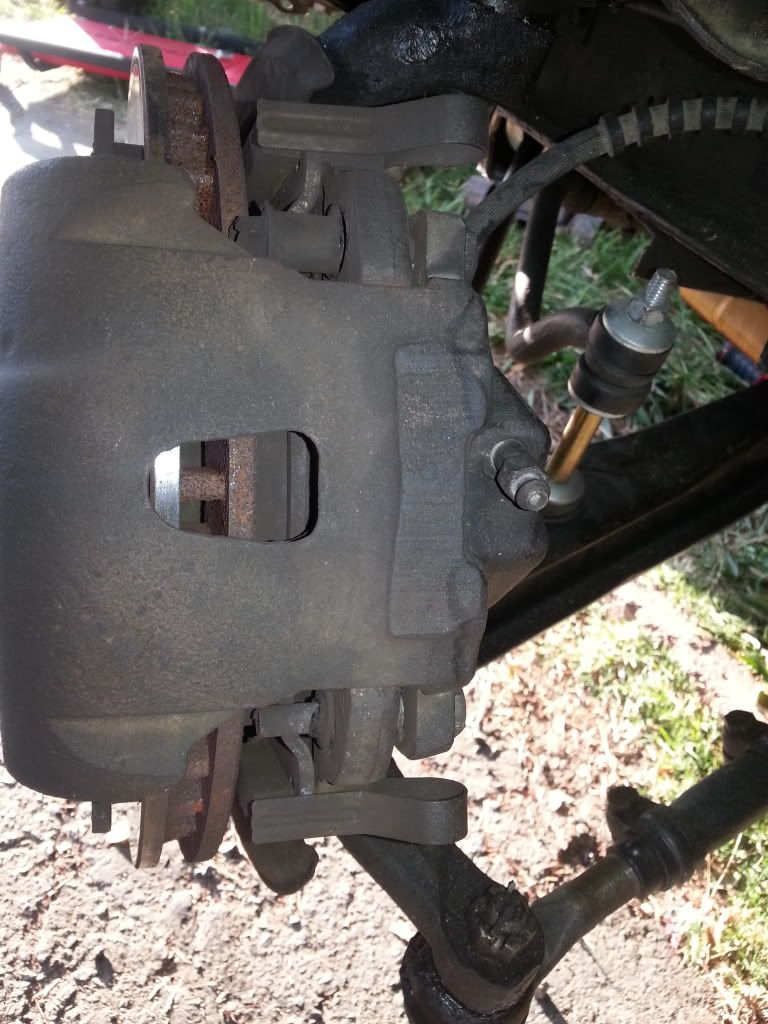

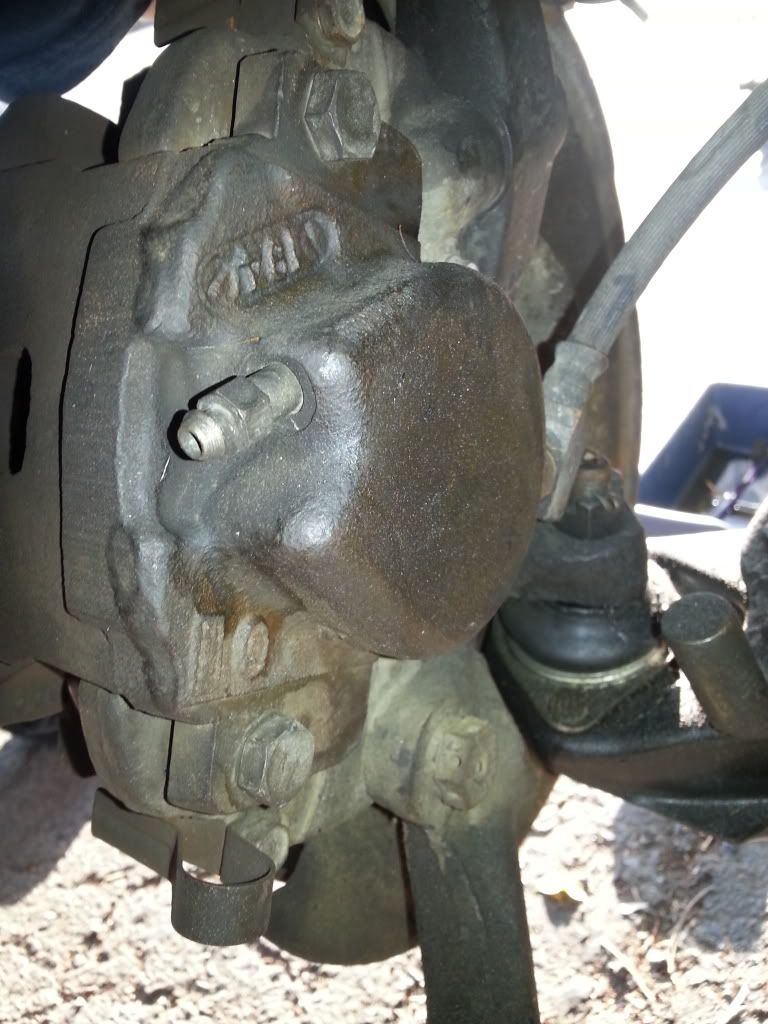

    Im still trying to figure this out.Is it safe to say that they're Torino or mustang calipers?

    [​IMG]



    [​IMG]

    [​IMG]

    vvr210, Jul 23, 2013
    #31
  2. Krazy Comet

    Krazy Comet Tom

    Joined:
    Sep 13, 2012
    Messages:
    7,717
    Likes Received:
    2,433
    Trophy Points:
    531
    Garage:
    1
    Location:
    Chesapeake VA
    Vehicle:
    1972 Comet GT clone 306 . 1969 Fairlane Cobra 428CJ 1988 T-Bird awaiting 331 ..

    I'm looking at a empty caliper from my '69 428 Fairlane and I don't see any real difference...

    The size of the bearings changed from '69 to '70 so you need to know which they are for rotor/bearings, but I believe calipers & pads are all same...

    I don't remember my rotors having the extra slots between the lugs, I have a set from a '69 Torino GT I can look at tomorrow...

    Last edited: Jul 23, 2013
    Krazy Comet, Jul 23, 2013
    #32
  3. 71gold

    71gold Frank Cooper Supporting Member

    Joined:
    Apr 9, 2002
    Messages:
    26,589
    Likes Received:
    2,934
    Trophy Points:
    978
    Garage:
    1
    Location:
    MACON,GA.
    Vehicle:
    '73 Grabber
    I think those are...wheel spacers...:yup:

    71gold, Jul 24, 2013
    #33
  4. Krazy Comet

    Krazy Comet Tom

    Joined:
    Sep 13, 2012
    Messages:
    7,717
    Likes Received:
    2,433
    Trophy Points:
    531
    Garage:
    1
    Location:
    Chesapeake VA
    Vehicle:
    1972 Comet GT clone 306 . 1969 Fairlane Cobra 428CJ 1988 T-Bird awaiting 331 ..
    That crossed my mind but since it was staying in place so nicely, I wasn't sure...

    Krazy Comet, Jul 24, 2013
    #34
  5. junrai

    junrai Member

    Joined:
    Dec 26, 2011
    Messages:
    2,516
    Likes Received:
    196
    Trophy Points:
    183
    Location:
    rancho cordova ca
    Vehicle:
    1972 mercury comet 1972 comet gt
    arent there numbers on the caliper and or pads or even spindles? thats how I found out what the 4 lug disc brake set up I have was for a pinto or mustang

    junrai, Jul 24, 2013
    #35
  6. vvr210

    vvr210 Member

    Joined:
    Mar 14, 2012
    Messages:
    586
    Likes Received:
    2
    Trophy Points:
    67
    Location:
    Vista,CA
    Vehicle:
    73 Grabber/73 Maverick4-Door 250
    Yes they are spacers.

    vvr210, Jul 24, 2013
    #36
  7. vvr210

    vvr210 Member

    Joined:
    Mar 14, 2012
    Messages:
    586
    Likes Received:
    2
    Trophy Points:
    67
    Location:
    Vista,CA
    Vehicle:
    73 Grabber/73 Maverick4-Door 250
    Cars in the shop right now but I'll take a look once its back

    Last edited: Jul 24, 2013
    vvr210, Jul 24, 2013
    #37
  8. vvr210

    vvr210 Member

    Joined:
    Mar 14, 2012
    Messages:
    586
    Likes Received:
    2
    Trophy Points:
    67
    Location:
    Vista,CA
    Vehicle:
    73 Grabber/73 Maverick4-Door 250
    I got a chance to look at the calipers today heres what I found.

    This is the drivers side caliper looks like a 184 to me
    [​IMG]

    Drivers side spindle
    [​IMG]

    Heres the passenger side caliper looks like a 217 to me
    [​IMG]

    and heres the passenger side spindle
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    vvr210, Sep 11, 2013
    #38
  9. Krazy Comet

    Krazy Comet Tom

    Joined:
    Sep 13, 2012
    Messages:
    7,717
    Likes Received:
    2,433
    Trophy Points:
    531
    Garage:
    1
    Location:
    Chesapeake VA
    Vehicle:
    1972 Comet GT clone 306 . 1969 Fairlane Cobra 428CJ 1988 T-Bird awaiting 331 ..
    D0ZA on the spindle would indicate they are '70 Stang brakes, those use a larger rotor than the Granada(basically a better brake)...

    I'm gonna use same on my Comet but mine are from a '69 Torino GT...

    EDIT

    I checked the Ford Master Parts Catalog and found the '70 & '71 Torino/Cyclone used the exact same D0ZA-3107/8-C spindle... Note those are casting numbers and not the actual part number...

    Last edited: Sep 11, 2013
    Krazy Comet, Sep 11, 2013
    #39
  10. vvr210

    vvr210 Member

    Joined:
    Mar 14, 2012
    Messages:
    586
    Likes Received:
    2
    Trophy Points:
    67
    Location:
    Vista,CA
    Vehicle:
    73 Grabber/73 Maverick4-Door 250
    So can I use 70/71 Torino/cyclone or Mustang rotors?

    vvr210, Sep 11, 2013
    #40
  11. Krazy Comet

    Krazy Comet Tom

    Joined:
    Sep 13, 2012
    Messages:
    7,717
    Likes Received:
    2,433
    Trophy Points:
    531
    Garage:
    1
    Location:
    Chesapeake VA
    Vehicle:
    1972 Comet GT clone 306 . 1969 Fairlane Cobra 428CJ 1988 T-Bird awaiting 331 ..
    '70/'71 Torino & '70 Mustang use same rotors as well as the other brake parts...

    If my '69 rotors were as nice as yours appear, I wouldn't need new ones...

    Krazy Comet, Sep 11, 2013
    #41
  12. vvr210

    vvr210 Member

    Joined:
    Mar 14, 2012
    Messages:
    586
    Likes Received:
    2
    Trophy Points:
    67
    Location:
    Vista,CA
    Vehicle:
    73 Grabber/73 Maverick4-Door 250
    I'm going to replace the caliper hardware and inspect the brake pads I haven't serviced the front brakes since I bought the car a year and a half ago

    Last edited: Sep 12, 2013
    vvr210, Sep 11, 2013
    #42
