2006 mustang elenor wheels offset 39mm will they fit?

Discussion in 'General Maverick/Comet' started by Flamesoldier, Jan 25, 2009.

  1. Flamesoldier

    Flamesoldier Member

    Joined:
    May 23, 2008
    Messages:
    84
    Likes Received:
    1
    Trophy Points:
    0
    Vehicle:
    1973 Ford Maverick 302

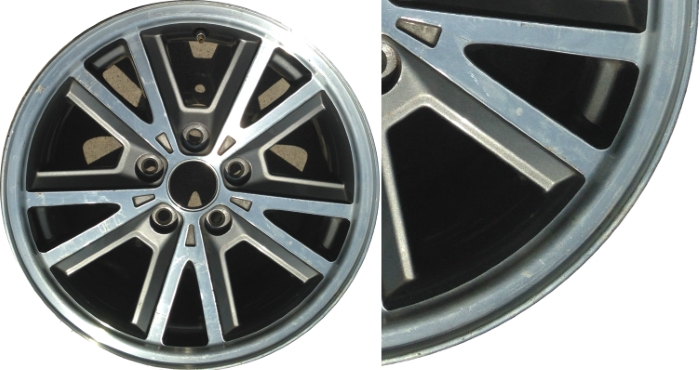

    I am looking into buy the 2006 elenor style rims. Here is the info will they fit?

    Wheel Size: 16 x 7", Bolt Pattern: 5 x 4.5" (5 x 114.3mm),Hub Dia: 70.6mm,Offset: 39mm
    [​IMG]

    Flamesoldier, Jan 25, 2009
    #1
  2. fastback86

    fastback86 Loose cars and fast women

    Joined:
    Jun 21, 2008
    Messages:
    401
    Likes Received:
    14
    Trophy Points:
    97
    Location:
    FL
    Vehicle:
    1974 Maverick 351W, 1985 5.0 Mustang coupe, 1996 F150, 2004 Subaru WRX Sti (Don't shoot me, it goes like hell!)
    I got those on mine. Your going to need at least a 1.25" spacer.

    fastback86, Jan 25, 2009
    #2
  3. Flamesoldier

    Flamesoldier Member

    Joined:
    May 23, 2008
    Messages:
    84
    Likes Received:
    1
    Trophy Points:
    0
    Vehicle:
    1973 Ford Maverick 302
    looks good what size tires are you running with that and is that the size spacer you have?

    Flamesoldier, Jan 25, 2009
    #3
  4. fastback86

    fastback86 Loose cars and fast women

    Joined:
    Jun 21, 2008
    Messages:
    401
    Likes Received:
    14
    Trophy Points:
    97
    Location:
    FL
    Vehicle:
    1974 Maverick 351W, 1985 5.0 Mustang coupe, 1996 F150, 2004 Subaru WRX Sti (Don't shoot me, it goes like hell!)
    215/65R16 with a 1.5" spacer. I got a wide spacer to be on the safe side. I'll probably go with a shorter spacer when I change to discs in the front and lower the car.

    fastback86, Jan 25, 2009
    #4
  5. Flamesoldier

    Flamesoldier Member

    Joined:
    May 23, 2008
    Messages:
    84
    Likes Received:
    1
    Trophy Points:
    0
    Vehicle:
    1973 Ford Maverick 302
    do you actually need the spacer? Im not going disk i have drum.

    Flamesoldier, Jan 25, 2009
    #5
  6. fastback86

    fastback86 Loose cars and fast women

    Joined:
    Jun 21, 2008
    Messages:
    401
    Likes Received:
    14
    Trophy Points:
    97
    Location:
    FL
    Vehicle:
    1974 Maverick 351W, 1985 5.0 Mustang coupe, 1996 F150, 2004 Subaru WRX Sti (Don't shoot me, it goes like hell!)
    You definitely need the spacers. If you don't you'll hit the leaf springs in the rear and I think the upper ball joint in the front.

    fastback86, Jan 25, 2009
    #6
  7. facelessnumber

    facelessnumber Drew Pittman

    Joined:
    Oct 4, 2007
    Messages:
    3,710
    Likes Received:
    31
    Trophy Points:
    157
    Location:
    Memphis, TN
    Vehicle:
    '71 Grabber
    Fastback86 speaks the truth... I use 1.5" spacers on my late Mustang wheels too. Nice car, by the way. Are those tires the stock Mustang size?

    facelessnumber, Jan 25, 2009
    #7
  8. fastback86

    fastback86 Loose cars and fast women

    Joined:
    Jun 21, 2008
    Messages:
    401
    Likes Received:
    14
    Trophy Points:
    97
    Location:
    FL
    Vehicle:
    1974 Maverick 351W, 1985 5.0 Mustang coupe, 1996 F150, 2004 Subaru WRX Sti (Don't shoot me, it goes like hell!)
    As far as I know they're stock for am '08 convertible. Someone else here confirmed that in another thread. I like your wheel s better though (y)

    fastback86, Jan 25, 2009
